Bench Vices

HER-101
BENCH VICE (Fixed Base) DOUBLE RIBBED
with Large anvil & Malleable Cast Nut

Size in mm 75 85 100 125 150
Width of Jaws 75 85 100 125 150
Opening of Jaws 75 100 110 135 160
Depth of Jaws 45 70 75 85 90
Weight in Kgs. 4 9.5 13 20 25
Remarks

* Semi Steel unbreakable body & Jaws Alloy Steel Seratted fitted with L-Key Bolts
* Double anvil corner to corner square beam, heavy Horn for more opening
* Thrust System in back for better alignment and box nut locked for long life working


HER-102
BENCH VICE (Swivel Base) DOUBLE RIBBED
with Large anvil & Malleable Cast Nut

Size in mm 100 125 150
Width of Jaws 100 125 150
Opening of Jaws 110 135 160
Depth of Jaws 75 85 90
Weight in Kgs. 18 25 30
Remarks

* Semi Steel unbreakable body & Jaws Alloy Steel Seratted fitted with L-Key Bolts
* Double anvil corner to corner square beam, heavy Horn for more opening
* Thrust System in back for better alignment and box nut locked for long life working

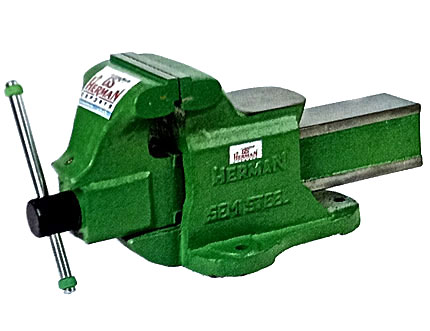

HER-103
BENCH VICE-HEAVY DUTY(Fixed Base) IS:2586
Double Ribbed with large anvil & Heavy Horn

Size in mm 100 125 150 200 250 300
Width of Jaws 100 125 150 200 250 300
Opening of Jaws 110 135 160 210 260 310
Depth of Jaws 75 85 90 100 110 120
Weight in Kgs. 17 22 29 40 50 55
Remarks

* Semi Steel unbreakable body & Jaws Alloy Steel Seratted fitted with L-Key bolts
* Double anvil corner to corner square beam, heavy Horn for more opening
* Thrust System in back for better alignment and box nut locked for long life working


HER-104
PRECISION TOOL ROOM VICE
(Screw Operated with Rear Jaw Sliding)

Size in mm 75 100 125 150
Width of Jaws 75 100 125 150
Opening of Jaws 75 100 125 150
Weight in Kgs. 4 9 20 32
Remarks

* Rear jaw sliding:The design of front jaw being stationary helps the additional muscular strength and never break like ordinary design
* Dove tail Guide Ways:Thus positive locking to withstand heavy loads.
* Nut & Screw: Are held in jig board holes hence are within the perfect straight line and have no tension spring which provides free motion and does not strain the operator
* Front Mounting : Holes are provided for Table and Mounts tje vice woth perfect rigidity.
