Drill Vices

HER-145
DRILL MACHINE VICE (Heavy Duty)
More Height

Size in mm 75 100 150
Size in inch 3 4 6
Width of Jaws 75 100 150
Opening of Jaws 75 100 150
Weight in Kgs. 5 8 16
Remarks

* Continuous Scew giving powerful grip on work.
* No Lifting of the sliding jaw.
* Moving jaw is plain & fixed is provided with one vertical & one horizontal 90° V-grooves.


HER-146
DRILL PRECISION VICE
Less Height

Size in mm 75 100 125 150
Size in inch 3 4 5 6
Width of Jaws 75 100 125 150
Opening of Jaws 75 100 125 150
Weight in Kgs. 2.5 5 9 11
Remarks

* Continuous Screw giving powerful grip on work.
* No Lifting of the sliding jaw.
* Jaws fitted from outer side of Body
* Moving jaw is plain & fixed is provided with one vertical & one horizontal 90° V-grooves.


HER-147
WOOD WORKING VICE
(Clamping)

Size in mm 75 100 125
Size in inch 3 4 5
Width of Jaws 75 100 125
Opening of Jaws 75 100 125
Weight in Kgs. 2.6 3.6 5.8
Remarks

* Continuous Scew giving powerful grip on work.
* No Lifting of the sliding jaw.
* Moving jaw is plain & fixed is provided with one vertical & one horizontal 90° V-grooves.


HER-148

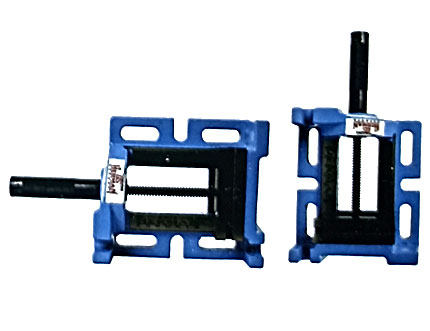

DRILL VICE - 3 Way Angle
(3 Side Right Angle)

Size in mm 100
Size in inch 4
Jaw Opening 100
Jaw Width 100
Weight in Kgs. 4.5
Remarks

* This vice is also available with 3 mounting options via 2 additional precisely ground surfaces: end face and side face. This allows for drilling along all axes with a single setting of the job and holding of long workpieces which are cumbersome and dificult to manage in regular vices.
