Pipe Vices

HER-137

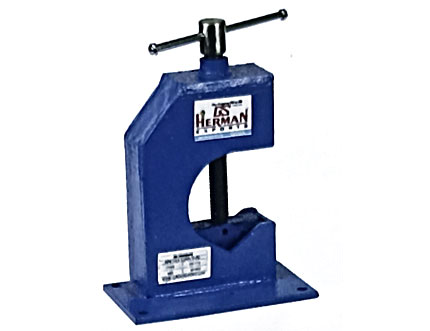

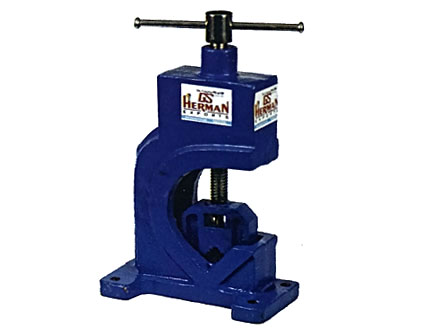

PIPE VICE (Open Type)

Size in mm 35 50 75 100 150 200
Pipe Dia Capacity Min 3 7 7 10 50 50
Pipe Dia Capacity Max 30 50 75 100 150 200
Weight in Kgs. (CI Cast) 5 8 14 18 44 92
Weight in Kgs. (SG Cast) ... 6.5 11 15 ... ...
Remarks

* Pipe Vices are designed to endure the heaviest pipe work fitted with long jaws these vices will hold pipes firmly without any crushing or bending
* The base is provided with four bolt holes to facilitate fasterning to bench or post.


HER-138

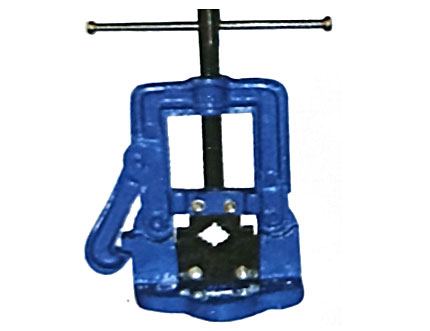

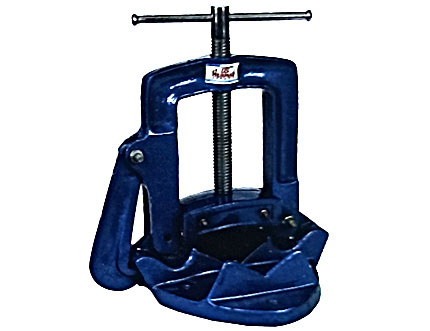

PIPE VICE (Hinged Type)
Self Locking

Pipe Dia Capacity (mm) 40 50 60 65 115 150
Pipe Dia Capacity (inches) 1.½ 2 2.½ 3.½ 4.½ 6
Weight in Kgs. 2.7 1.4 5.7 7 11 21
Remarks

* Hinged Pipe vice so called because the frame (Containing the main scew and top jaw) and the base are hinged together.
* To grip a pipe the frame is hinged back pipe located on the lower jaw. When the frame is hinged own a locking hook automatically engages into the side of the base holding the vice firmly shut. Ideal for fast repetitice work.


HER-139

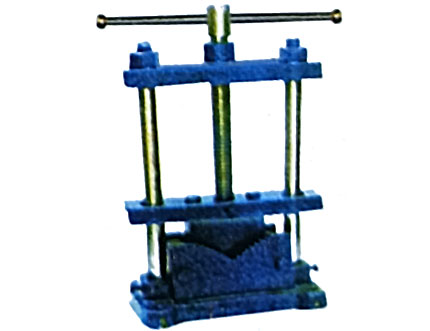

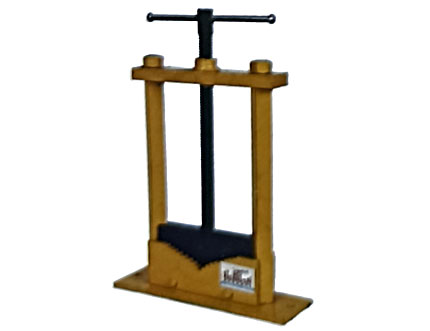

PIPE VICE (Square / Round Piller)

Pipe Dia Capacity (mm) 40 50 75 100 150
Pipe Dia Capacity (inches) 1.½ 2 3 4 5
Weight in Kgs. (Sq/P) 2 3.6 6 7.2 10
Weight in Kgs. (Rd/P) 4.5 5.3 10 20 ...
Remarks

* The Moveable jaw is running into square & round steel bars
* All steel body replaceable accurately machined
* Hardened & tempered jaws.


HER-140
PIPE VICE (Chain Grip)

Pipe Dia Capacity (mm) 50 75 100 150 200
Pipe Dia Capacity (inches) 2 3 4 6 8
Weight in Kgs. 1.7 2.5 4.1 8.4 10.5
Remarks

* If the main feature of the hinged vice is speed of operation, the feature which distinguishes the chain vices is very powerful grip. The Pipe rests on a "V" formed by two sets of forged heat treated steel jaws.
* The high tensile steel chain is then looped over the pipe, locked into a slot between the jaws and tensioned by a handle and screw; a strong rigid three-point location which renders the pipe movable.
* Compact and easy to store away.
