Steel Fabricated Vices

HER-133

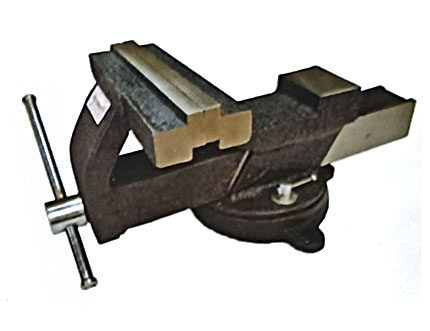

ALL STEEL TABLE VICE
(Round Base)

Size in mm 75 100 125 150 200
Size in inch 3" 4" 5" 6" 8"
Width of Jaws 75 100 125 150 200
Weight in Kgs. (F/B) 3.5 6 9.5 10 15.5
Weight in Kgs. (S/B) 4.5 7 11 12.5 18.5
Remarks

* Manufactured from High Tensile Steel Plate
* Swivel Base provides flexibility for locking at any desired angle by its low profile 360°
* Ideal for Machinist or Craftsmen.


HER-134

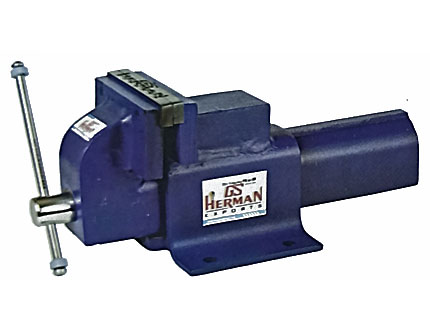

ALL STEEL OFF-CENTER VICE

Size in mm 100 125 150 200
Size in inch 4 5 6 8
Width of Jaws 100 125 150 200
Opening of Jaws 100 125 150 200
Weight in Kgs. (S/B) 14 23 33 40
Remarks

* Manufactured from High Tensile Steel Plate
* Square base with four holes for fitting on table
* Specially for long jobs to hold in off-center jaws


HER-135
ALL STEEL COMBINATION VICE
with Pipe Jaws & Soft Jaws

Size in mm 125 200
Width of Jaws 125 150
Opening of Jaws 175 250
Weight in Kgs. (S/B) 20 32
Remarks

* Manufactured from High Tensile Steel Plate
* Round base with two holes for fitting on table
* Inbuilt Pipe Jaws and flat Seratted Jaws
* Aluminium Soft jaws for soft work Interchangeable


HER-136

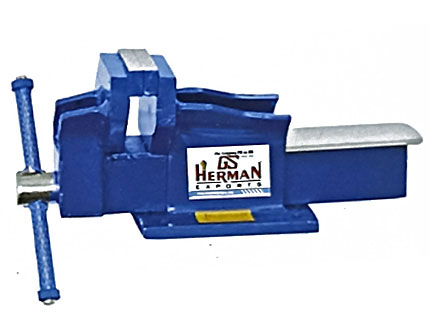

ALL STEEL BENCH VICE WITH ANVIL

Size in mm 100 125 150 200
Width of Jaws 100 125 150 200
Opening of Jaws 120 150 200 250
Weight in Kgs. 6 18 37 43
Remarks

* Manufactured from High Tensile Steel Plate
* Square base with four holes for fitting on table
* Inbuilt groove in moveable slide for better accuracy
* A-Down Groove in slide
* B-Over groove in slide
