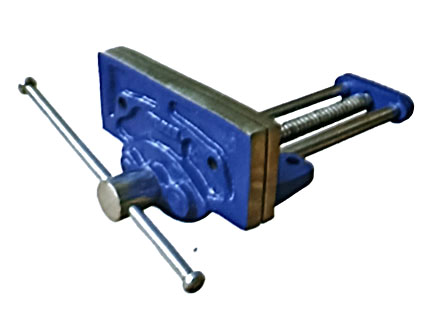

Size in mm | 150 | 175 | 200 | 225 |
---|---|---|---|---|
Width of Jaws | 150 | 175 | 200 | 225 |
Opening of Jaws | 180 | 230 | 260 | 330 |
Weight in Kgs. | 4.6 | 8.1 | 10.5 | 15.3 |
Remarks |
* Accuraterly machined housing assure smooth sliding movement.
* Square body seating provides easy fitment under the bench top so that jaws are flush with the bench top.
* Body and sliding jaw have provision for attaching wooden liners to protect the vice, work piece and working tools.
* Vice jaws equipped with a "TOE-IN" feature. When fully closed, the jaws meet only at the top to provide even clamping
on the whole depth of the work piece.

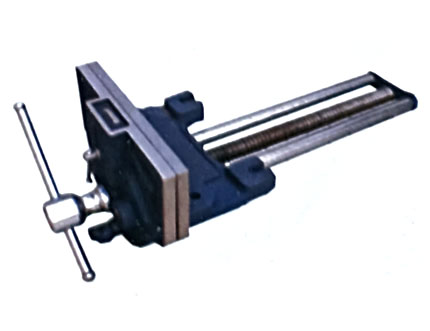

Size in mm | 175 | 225 | 255 |
---|---|---|---|
Width of Jaws | 175 | 225 | 255 |
Opening of Jaws | 175 | 350 | 400 |
Weight in Kgs. | 7.5 | 15.5 | 17 |
Remarks |
* Equipped with the quick release mechanism.
* A very useful feature in repetitive work situations.
* Squeeze the trigger, and a quick release vice can be opened and closed without using the mainscrew.
Large and small work pieces can be quickly interchanged, while releasing the trigger returns the mechanism to
normal for fine adjustment.
Size in mm | 150 |
---|---|
Size in inch | 6 |
Width of Jaws | 150 |
Opening of Jaws | 150 |
Weight in Kgs. | 3.5 |
Remarks |
* Wood Working Vice with Cleamping inbuilt in body
* A very useful feature in repetitive work situations
* Easy to handle for outdoor work
Size in mm | 600 | 750 | 900 | 1050 | 1200 | 1500 | 1800 | 2400 |
---|---|---|---|---|---|---|---|---|
Size in Feet | 2 | 2.½ | 3 | 3.½ | 4 | 5 | 6 | 8 |
Remarks |
* S.G Iron, Cast Iron and Malleable Steel two Gripping jaws
* Movable jaw can be hold at any pin point attached with chain
* Fix jaw is fitted with rivets
* A - one fix jaw & one moveable jaw on T-bar
* B - Both jaws detachable moving on hollow section pipe
